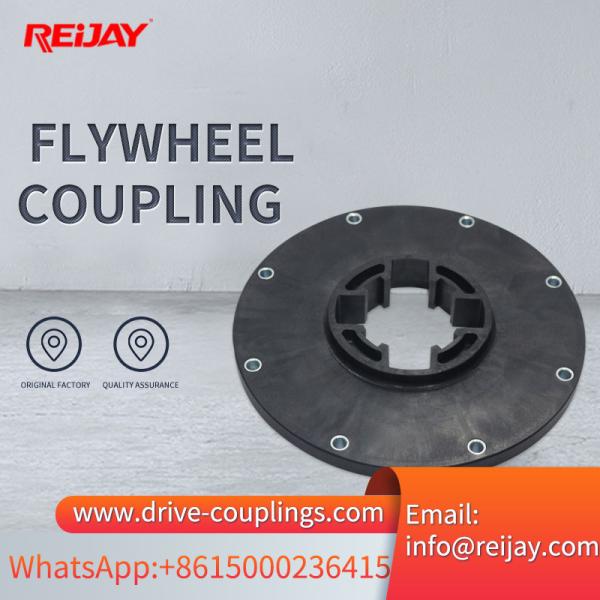

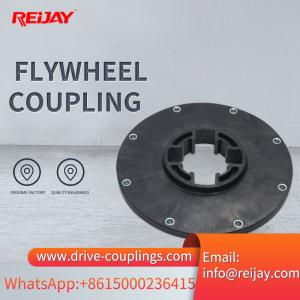

Chemical Machinery Flexible Disc SAE Flywheel Coupling Power Transmission Parts

  • 1
  • 2

Brand Name : REIJAY

Model Number : RB

Certification : Provide

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : Negotiable

Packaging Details : Yes

KEY WORDS : Sae Flywheel Coupling

Advantages : Adapt To High Temperature And Harsh Environment

Application : Chemical Machinery

certification : ISO9001/ITS16949

warranty : 2 years

Product name : Flexible Disc Coupling

Installation : video guide

Material : rubber and steel

Feature : High temperature resistance

Customizable : Support

Contact Now

Adapt To High Temperature And Harsh Environment Flexible Disc Coupling Power Transmission Parts For Chemical Machinery

The Flexible Disc Coupling Power Transmission Parts consists of at least one diaphragm and two shaft sleeves. The diaphragm is usually fixed to the bushing without loosening or causing backlash between the diaphragm and the bushing. The characteristics of Flexible Disc Coupling Power Transmission Parts is somewhat like bellows couplings. The coupling transmits torque in the same way. The diaphragm itself is very thin, so it is easy to bend when relative displacement load occurs. The diaphragm has good torque stiffness, but it is slightly lower than that of bellows coupling. On the other hand, the Flexible Disc Coupling Power Transmission Parts is very delicate. It is easy to be damaged if it is improperly used or installed.

Flexible Disc Coupling Power Transmission Parts can be widely used in general industrial equipment to high-speed precision machinery. They are one of the most versatile coupling designs and can be customized to meet the needs of almost all applications. Some applications where flexible disc couplings can be used include:Centrifugal and screw compressors, reciprocating compressors, fans and blowers, food processing, machine tools, cooling towers, printing presses, engine and motor drive applications, power generation.

We have been Rexroth,Parker,Eaton...supplier for many years. Shanghai Reijay Hydraulic Transmission Technology Co. Ltd. was established in 2003. We are committed to providing the most advanced mechanical transmission components, hydraulic group accessories and heat exchange products (heaters and coolers).

To better satisfy special demands from customers, we can provide non-standard design, product invention, shafting torsional vibration calculation, simulation system testing and related professional software support. More than 40% of the employees in Reijay nowadays are professional engineers (including senior engineers) with bachelor’s degrees or above. At the same time, we are glad to have 8 senior product application engineers and development engineers (including a PhD in Machinery who studied in Germany before). Reijay has established cooperation with many well-known universities and research institutes in dynamic simulation analysis, motion, shock, dynamics, vibration, strength, and other reliability tests. Furthermore, Reijay also cooperates with some research institutes enterprises in development partnerships and industrial and mining application tests.

Technical Specifications

Size Bolt Mounting Center Circke D1(mm) Outer Diameter D(mm) Bolt Hole Diameter Quantity (mm) Location Dimension
96 50 96 4x8 70
125 100 125 3x8 80
135 100 135 3x8 135
150 130 150 5x8 106
152 122 152 3x12 105
155 125 155 3x12 155
210 185 210 3x10 125
220 165 220 6x10 220
220 185 220 3x12 125
170 140 170 3x14 170
209 165/170 209 6x16/3x16 209
RB Series FL flywheel Coupling Technical Parameter
Size Prebore (mm) Dimension (mm)
min max B D2 L1 L2 L3 L4 L5
42 20 42 65 100 42 35 42 20 13
48 20 48 68 100 50 43 50 20 13
65 25 65 96 132 55 49 55 27 21
65 25 65 96 172 55 46 55 31 22
80 30 80 124 172 55 46 55 30 21
100 38 100 152 265 70 78 70 35 21
